GALVANIZED CONVEYORS
(SINGLE-CHAIN)

Specifications
Elevator Length
Elevator Length

Overall Length = Effective Length plus: 9" — for 9", 11", and 13" widths

Trough Cross Section
Trough Cross Section
Incline Hopper
Incline Hopper

Click the image below to enlarge

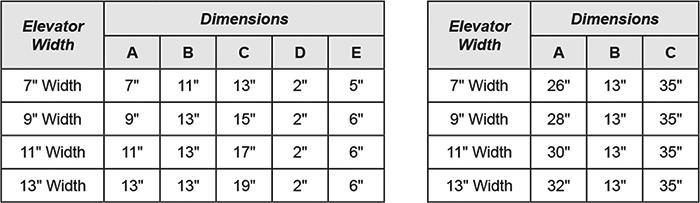

Elevator Width Dimension Chart

Click the image below to enlarge

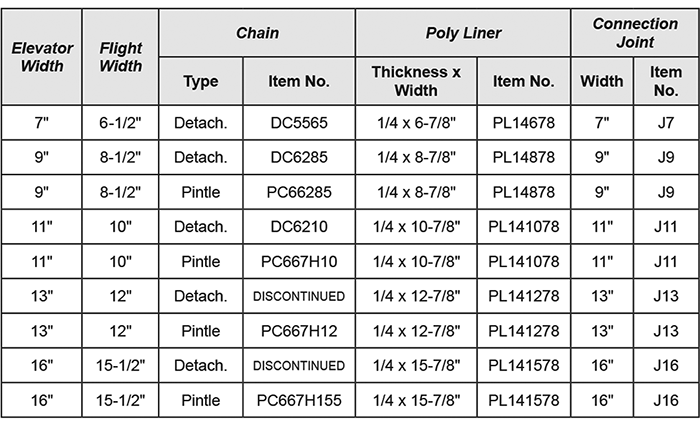

Single Chain Conveyor Specs Chart

Click here to download all three charts on this page

CONNECTING JOINTS
  • Furnished on elevator lengths over 14' (for ease of delivery). Factory installed at any point along elevator — specify location (usually at midpoint for easiest handling). Also furnished on shorter length elevators, at no charge, if requested.
  • Joints constructed of sturdier angle iron — prevents bowing, twisting and bending — eliminates stretching. Stronger than flat connector plates.
  • Simple to connect — joints bolt to each other quickly.
