GALVANIZED CONVEYORS
(SINGLE-CHAIN)
Price List — 9", 11" & 13" Pintle-Chain Models
Includes incline hopper, motor mount, and required belts. Set up and ready to go — just mount motor (not included) and install shields. Connecting joints furnished on lengths over 12' — factory installed at any point along elevator. Specify location (usually mid-point for ease of handling). Also furnished on shorter length elevators at no charge, if requested. Standard poly wear liner protects pan — super-slick, self-lubricating liner prevents freezedown... reduces chain stretching... increases chain life, cuts noise levels and lowers energy consumption by up to 30%.

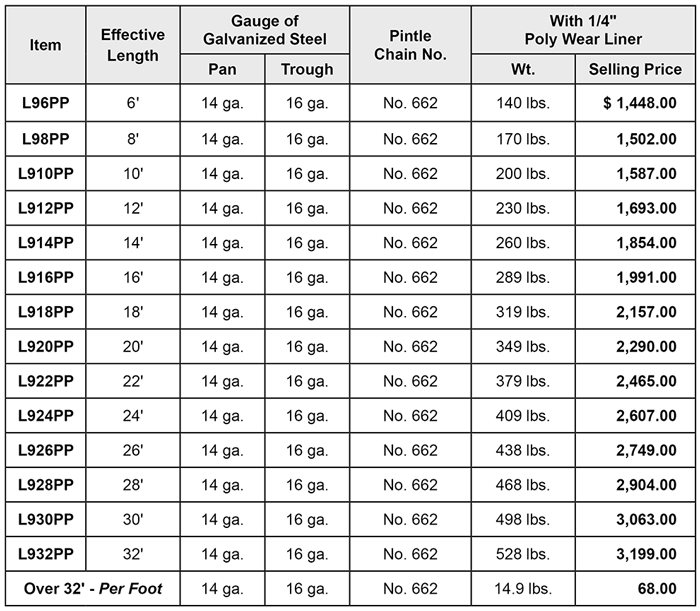

9" WIDTH GALVANIZED CONVEYOR
(Includes heavy-duty, full-width, cross shaft; and a two, not one-bearing, idler shaft)
Click the image below to enlarge
Click here to download this chart
Recommended Maximum Length: 9" Width - 42'

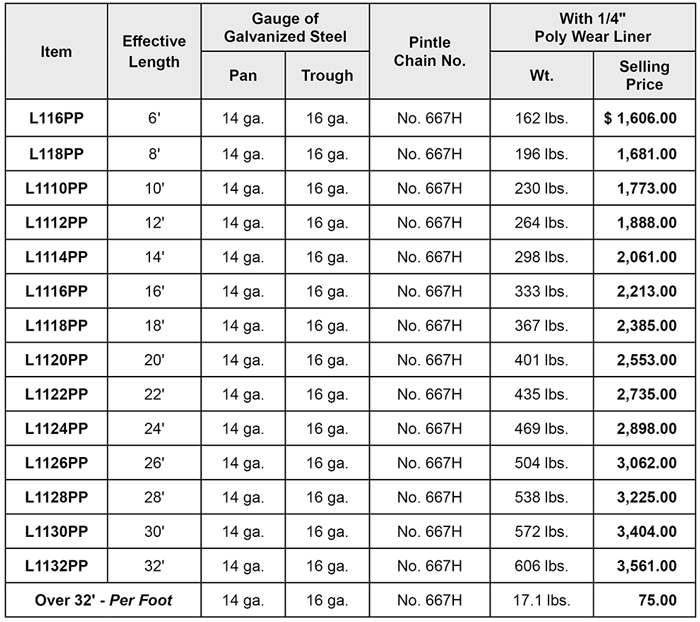

11" WIDTH GALVANIZED CONVEYOR
(Includes heavy-duty, full-width, cross shaft; and a two, not one-bearing, idler shaft)
Click the image below to enlarge
Click here to download this chart
Recommended Maximum Length: 11" Width - 60'

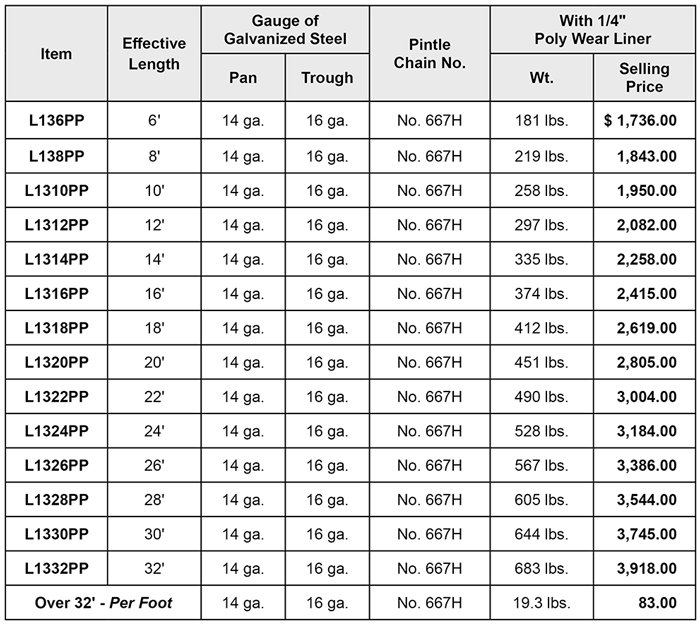

13" WIDTH GALVANIZED CONVEYOR
(Includes heavy-duty, full-width, cross shaft; and a two, not one-bearing, idler shaft)
Click the image below to enlarge
Click here to download this chart
Recommended Maximum Length: 13" Width - 48'
