Hay Bale Elevator Systems

HAY BALE-ELEVATOR SYSTEMS

Click to Enlarge Photos

ELECTRIC MOTORS
  • Heavy-duty, FARM RATED, capacitor-start motors are totally enclosed and fan cooled (single-phase)
  • TEFC (Total Enclosed Fan Cooled)...1-year limited warranty
  • Capacitor-start...Manual reset for thermal protection
  • Double-shielded ball bearings...Rotation easily reversed
  • Both windings and grease effective at temperatures down to minus 40° F
  • Motors supplied with slinger on shaft and gasketed conduit box
  • Motor cord & switch not included (purchase from your electrician). Wiring should be done by a qualified electrician in accordance with local and national codes.
Note: View Horsepower Requirements

Click the image below to enlarge

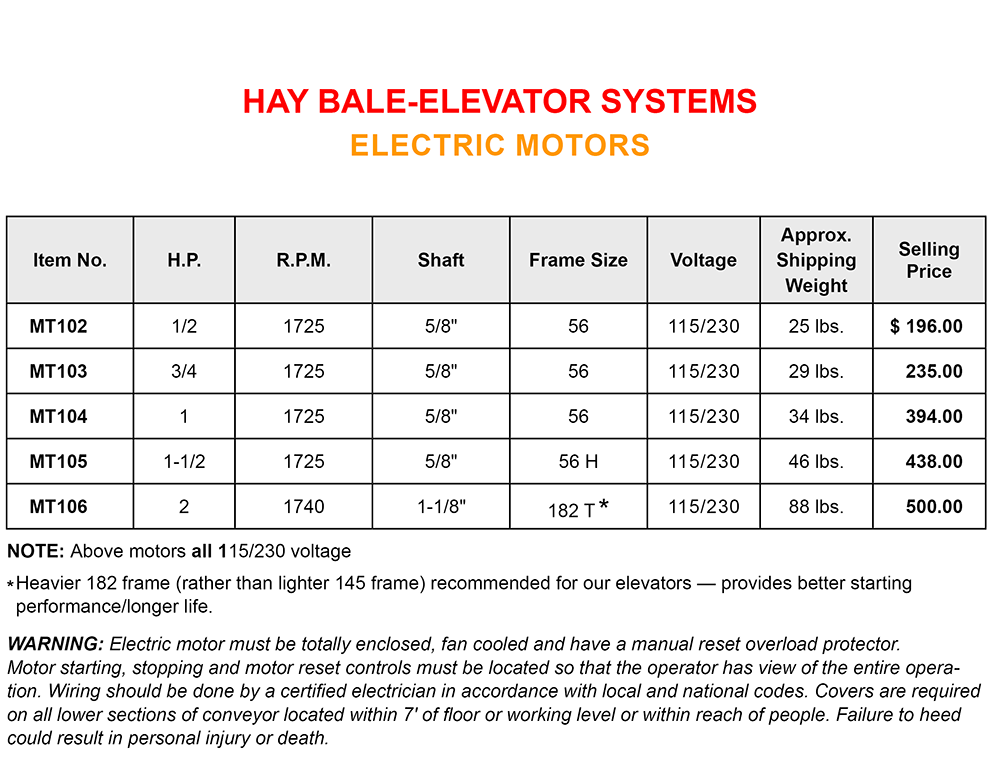

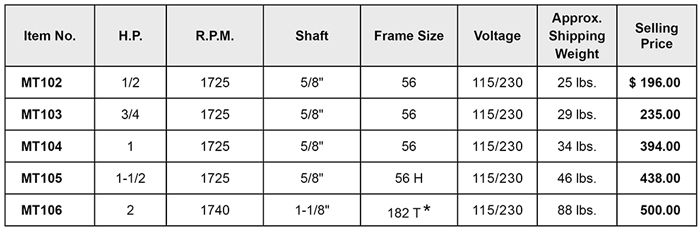

Electric Motors

+ Generally recommended for elevators

Click here to download this chart

*Heavier 182 frame (rather than lighter 145 frame) recommended for our elevators — provides better starting performance/longer life.

WARNING: Electric motor must be totally enclosed, fan cooled and have a manual reset overload protector. Motor starting, stopping and motor reset controls must be located so that the operator has view of the entire operation. Wiring should be done by a certified electrician in accordance with local and national codes. Covers are required on all lower sections of conveyor located within 7' of floor or working level or within reach of people. Failure to heed could result in personal injury or death.



MOTOR PULLEYS
  • Cast-iron...single-groove
  • Precision cast and machined for perfect balance
  • Solid construction on fixed bore with hollow-head set screw and standard keyway
  •






Click the image below to enlarge

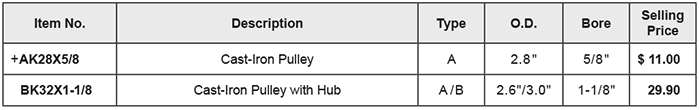

Motor Pulleys

+ Generally recommended for elevators

Click here to download this chart



ELECTRIC MOTOR WITH PULLEY & CORD
  • Prewired with 7" cord with plug (115V)
  • Pulley assembled to motor
  • Select motor that matches your elevator in price chart below

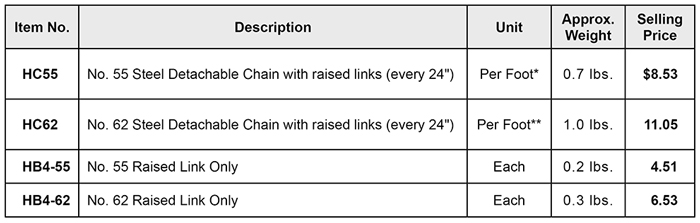

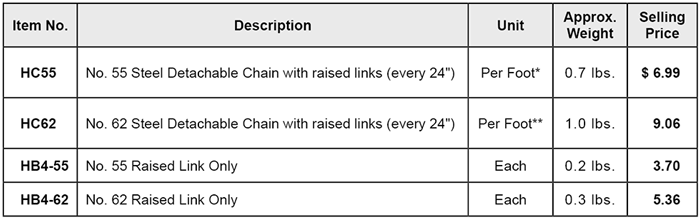

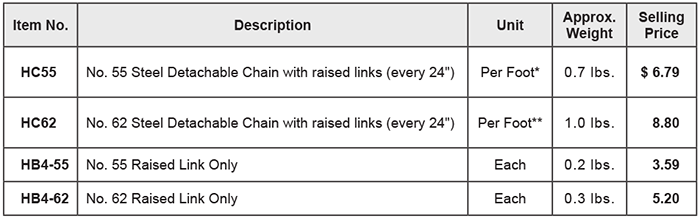

REPLACEMENT CHAIN
(fully assembled — ready to go)


Click the image below to enlarge

Replacement Chain

+ Generally recommended for elevators

Click here to download this chart

* Available in 8', 12', 16', or 24' lengths
** Available in 12' and 24' lengths

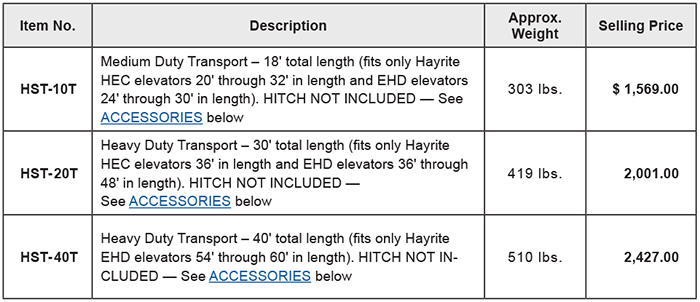

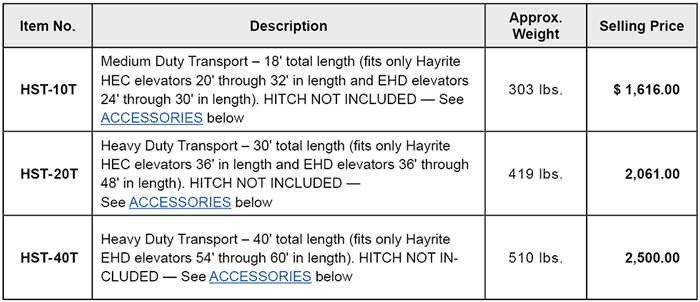

TRANSPORTS
With 15" — 4-Bolt Wheel Rims...RUBBER TIRES NOT INCLUDED. HITCH NOT INCLUDED — See ACCESSORIES below

CAUTION: Do not mount a longer or shorter length elevator than recommended below on transport. Failure to heed may result in personal injury or death.

Click the image below to enlarge

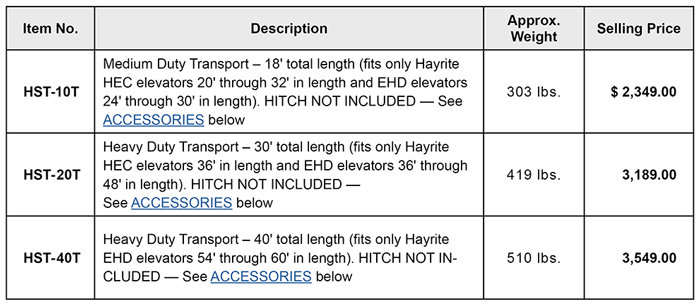

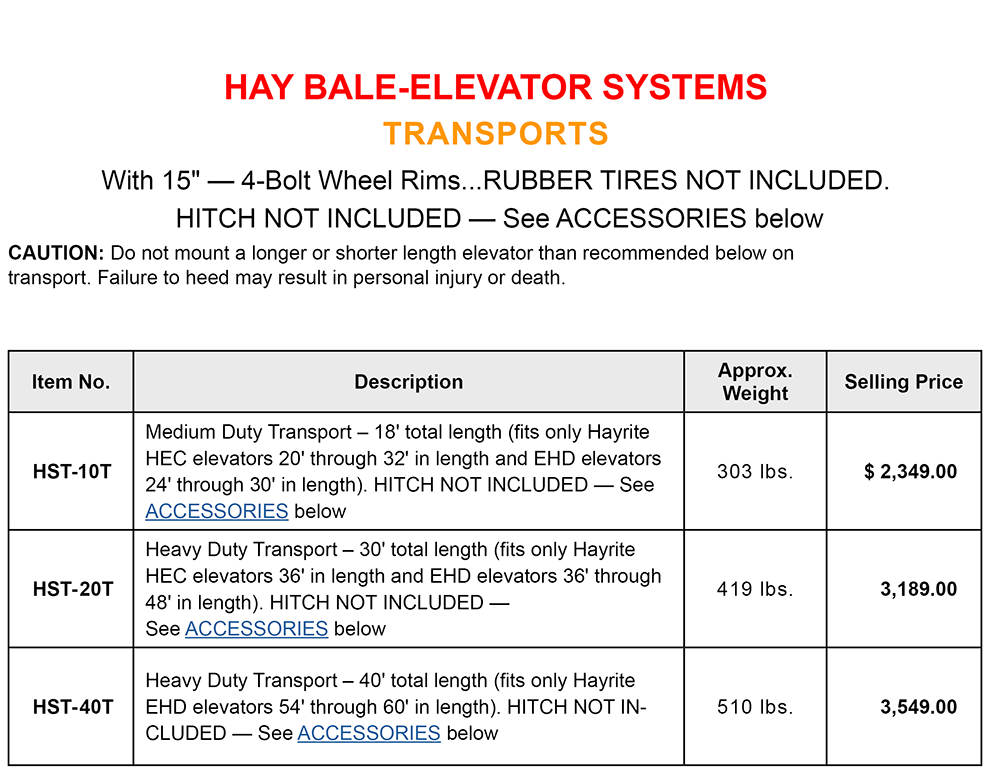

Transports

+ Generally recommended for elevators

Click here to download this chart

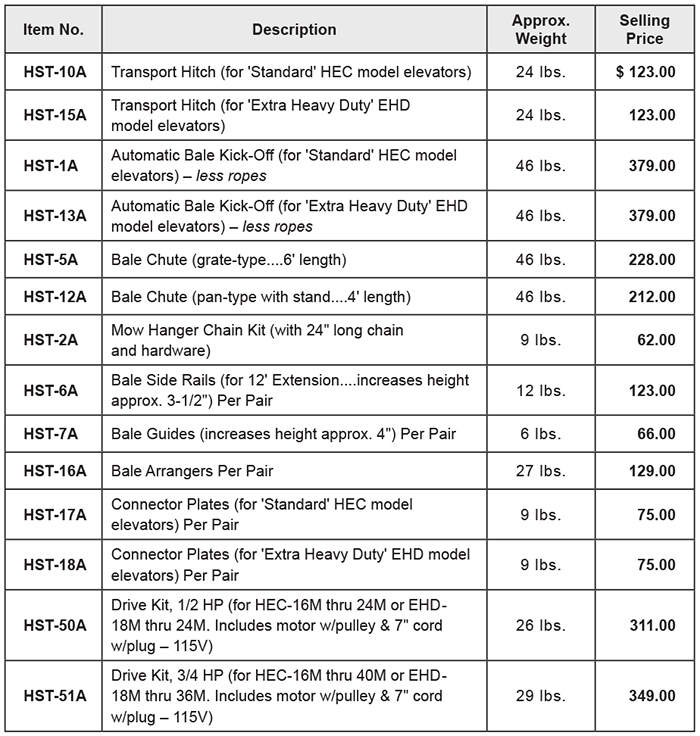

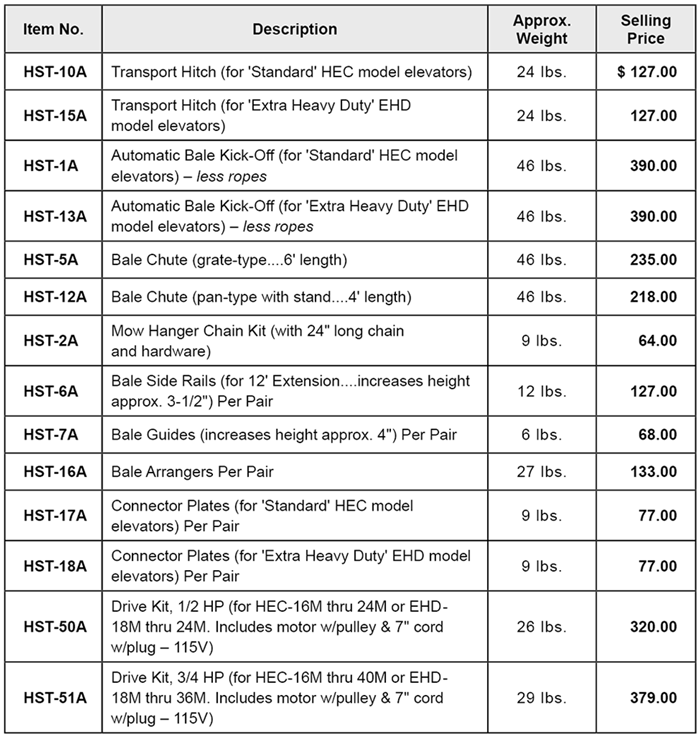

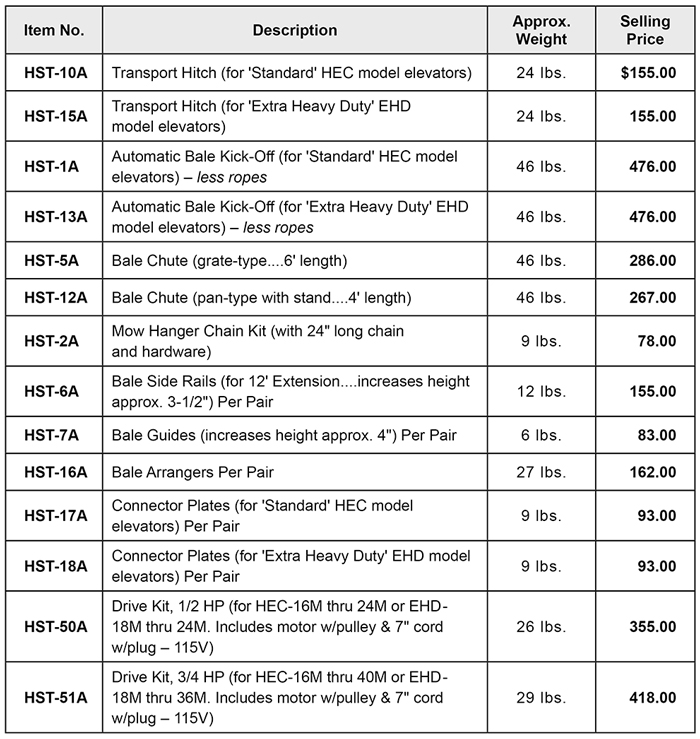

ACCESSORIES
(Automatic Kick-Off [model HST-1A] and Bale Chutes [models HST-5A and HST-12A] are interchangeable with Miller, Smalley and Snowco Brands)

Click the image below to enlarge

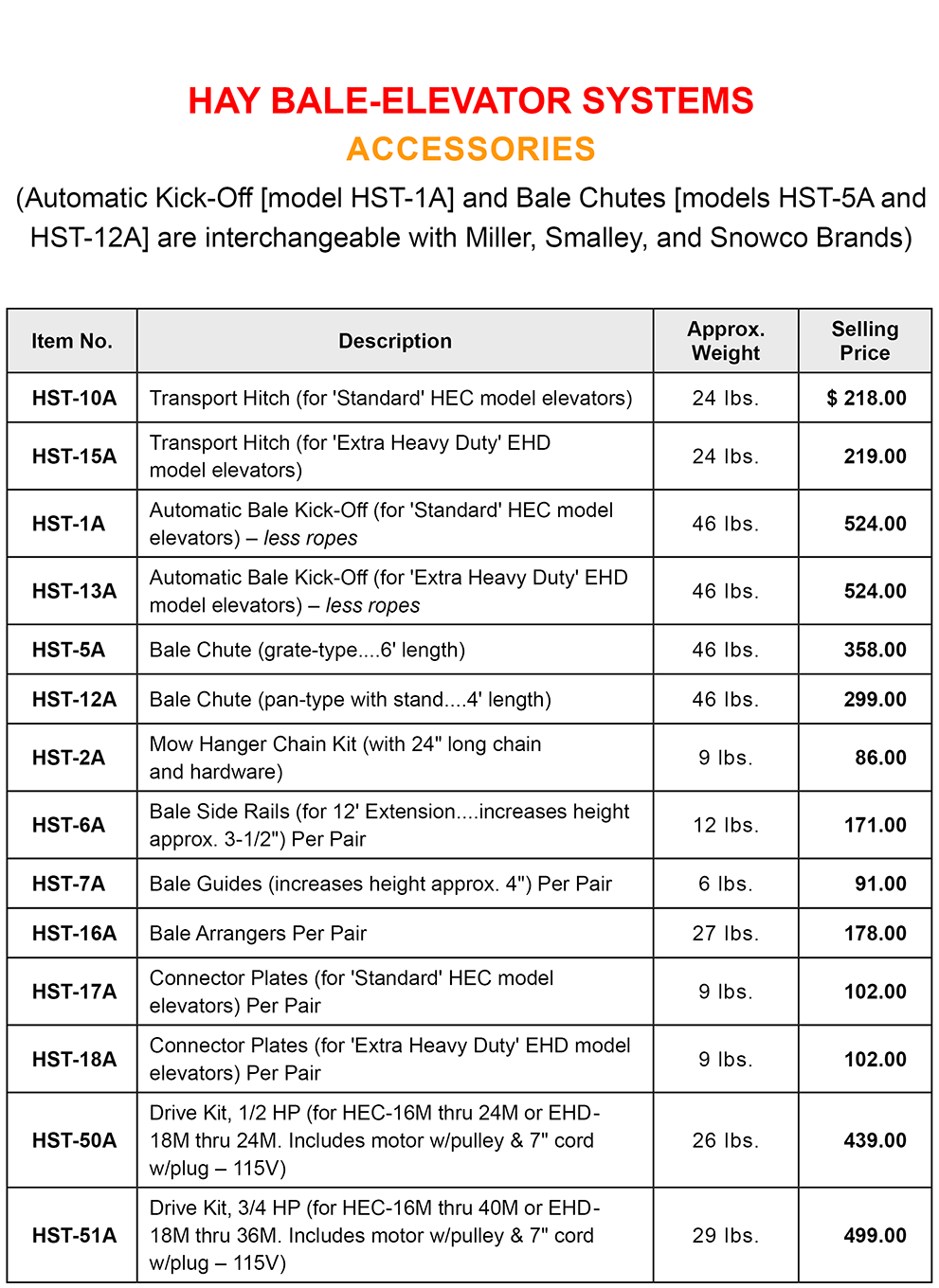

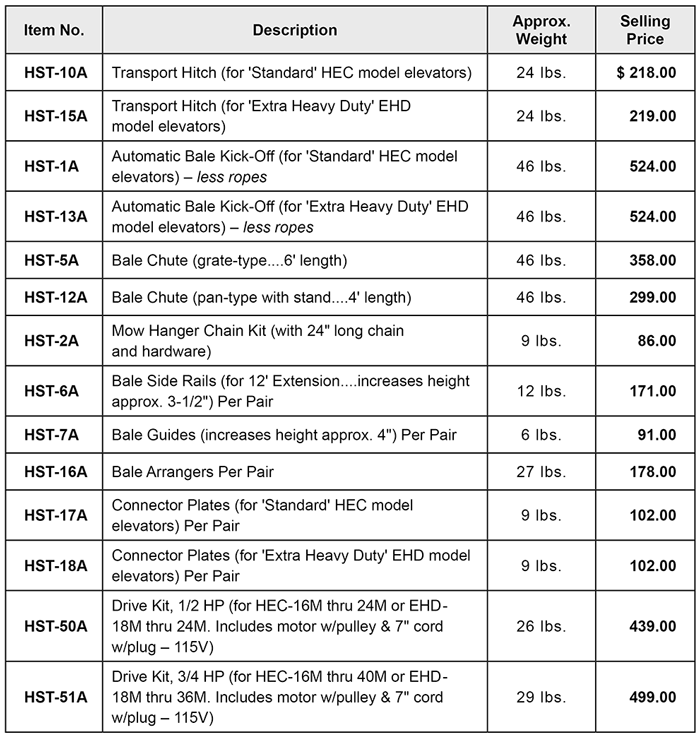

Accessories

+ Generally recommended for elevators

Click here to download this chart
